JYCMED manufactures project-defined medical cable connectors, equipment sockets and overmolded connector assemblies for medical device OEMs. Contact arrangement, keying, locking method, termination, housing, shielding, cable integration and verification criteria are developed for the target device and approved specification.

  • Equipment-side sockets and cable-side plugs
  • Project-defined contacts, pinout, keying and color coding
  • Connector, cable, overmolding and strain-relief integration
Color-coded medical cable connectors and matching equipment sockets

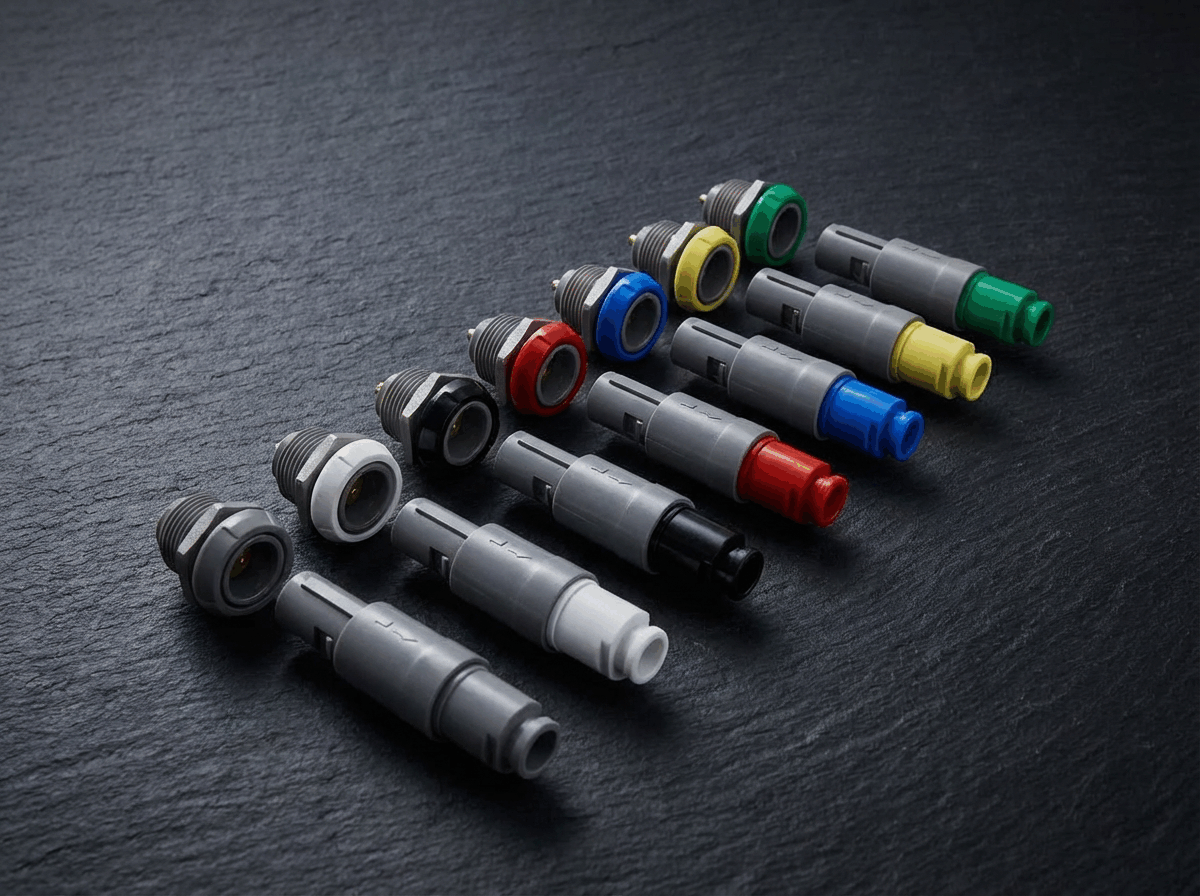

Examples of color-coded cable-side connectors and matching equipment-side sockets for project-defined medical cable interfaces.

Product definition

What Are Medical Cable Connectors and Sockets?

A medical cable connector system forms a removable or fixed electrical interface between a cable assembly and compatible medical equipment, sensor, electrode or accessory.

The cable-side component may be a plug or overmolded connector, while the device-side component may be a socket, receptacle or PCB-mounted interface. “Medical connector” describes the application, not a universal performance class; electrical, mechanical, environmental and regulatory requirements must be defined for the finished device.

Available constructions

Medical Connector and Socket Configurations

Final connector construction depends on the target device, signal or power path, mating interface, cable assembly and approved use requirements.

Cable Plugs

Soldered, crimped or otherwise approved cable-side connectors with optional overmolding and strain relief.

Panel Sockets

Equipment-side receptacles configured for panel, enclosure or project-specific mechanical mounting.

PCB Interfaces

Board-mounted sockets or connector subassemblies developed to the approved footprint and device architecture.

Integrated Assemblies

Connector, cable, shielding, overmolding, labels and branches supplied as one controlled cable assembly.

Project-defined product data

Medical Connector and Socket Specifications

Final values and acceptance criteria are established from the exact interface, cable construction and approved customer documentation rather than applied across every connector family.

Product functionCable plug, equipment socket, PCB interface, adapter or integrated connector-and-cable assembly
Contact arrangementSingle-contact, multipin, coaxial, hybrid or another project-defined configuration
Contact assignmentPinout, polarity, shielding and identification defined by the approved interface drawing
Mating and lockingPush-pull, latch, snap, threaded, friction or another approved retention method
Keying and codingMechanical key, contact pattern, color, symbol or label as specified for the device interface
Cable terminationSolder, crimp, PCB, contact insert or project-approved termination process
Housing and overmoldingProject-approved resin, TPU, TPE, silicone, PVC or another specified material system
Shielding and groundingUnshielded, shell-grounded, individual or overall shielding according to system requirements
Electrical and environmental dataContact resistance, insulation, voltage, current, temperature, ingress protection and mating life as project-defined
VerificationPinout, continuity, contact resistance, insulation, retention, dimensions and other approved mechanical or environmental checks

Design priorities

Medical Connector Design for Interface Control and Cable Integration

Contact and Pinout Definition

Each contact is mapped to the approved signal, power, ground or shield path so assembly and finished-cable verification can use the same controlled interface definition.

Keying and Mating Control

Mechanical keying, orientation, locking and color or label identification are selected to support the device’s approved connection workflow.

Termination and Strain Relief

Contact termination, conductor preparation, overmolding and cable-exit geometry are developed for the required retention, bending and handling conditions.

Shielding and Enclosure Integration

Shell construction, ground path, shielding termination, panel mounting and sealing are configured where required by the system-level electrical and environmental design.

Equipment integration

Medical Connector Compatibility Requires Exact Interface Verification

Connectors with similar dimensions may use different keying, contact assignments, shell grounding, identification components, mating tolerances or retention methods. Appearance, color or a third-party brand reference alone cannot confirm compatibility.

Provide the device model, mating connector part number, dimensional drawing, pinout, PCB or panel details, cable specification or physical sample for review.

Third-party brand names, when supplied by a customer, are used only as interface references. JYCMED does not imply affiliation, endorsement or equivalent performance unless supported by the applicable project documentation.

OEM / ODM manufacturing

Custom Medical Connector and Cable Assembly Manufacturing

JYCMED supports interface review, connector selection or custom component development, cable integration, overmolding, sample verification and controlled production. Requirements are transferred into approved drawings, bills of material and acceptance criteria before production release.

Customer Interface RequirementConnector EvaluationDesign & SpecificationPrototype DevelopmentValidation / ApprovalProduction TransferControlled Manufacturing

Quality control

Medical Connector Production and Verification

  • ISO 13485 quality-management production environment
  • Incoming contacts, housings, cable and component inspection
  • Controlled pinout, termination and assembly instructions
  • Continuity, contact resistance and insulation verification
  • Visual, dimensional, retention and workmanship inspection
  • Production records and lot traceability

Signal performance, mating life, ingress protection, biological evaluation, EMC, medical safety and finished-device compliance are product- or system-level claims requiring the applicable testing and approved documentation. Available supplier and quality records can be reviewed in the JYCMED resources center.

Buyer questions

Medical Connector and Socket FAQs

What is the difference between a connector, plug, socket and receptacle?

A connector describes the complete mating interface. A plug is commonly the cable-side component, while a socket or receptacle is commonly mounted to equipment, a panel or a PCB. Project terminology may differ, so drawings and mating details should control the definition.

Are medical connectors universally interchangeable?

No. Dimensions, contact arrangement, keying, pinout, shell grounding, locking and tolerances must match the exact mating interface and device requirements.

Can JYCMED supply a connector without a cable?

Standalone plugs or sockets may be available for a defined project. JYCMED can also supply the connector integrated with cable, shielding, overmolding, strain relief and labels as a controlled assembly.

Can connector color, pinout, keying and housing be customized?

These elements can be developed or selected to an approved OEM specification, subject to tooling, materials, electrical requirements and the confirmed mating interface.

Does a connector used in medical equipment automatically comply with medical standards?

No. Compliance generally applies to a documented component, cable assembly or finished device under specified conditions. The applicable safety, EMC, biological and regulatory requirements must be defined and verified at project level.

What information is needed for a custom medical connector project?

Provide the device model, mating connector, drawings or sample, contact count, pinout, voltage and current, mechanical envelope, locking method, cable construction, shielding, overmolding, environmental conditions and acceptance criteria.
